CO2 laser engraving machine

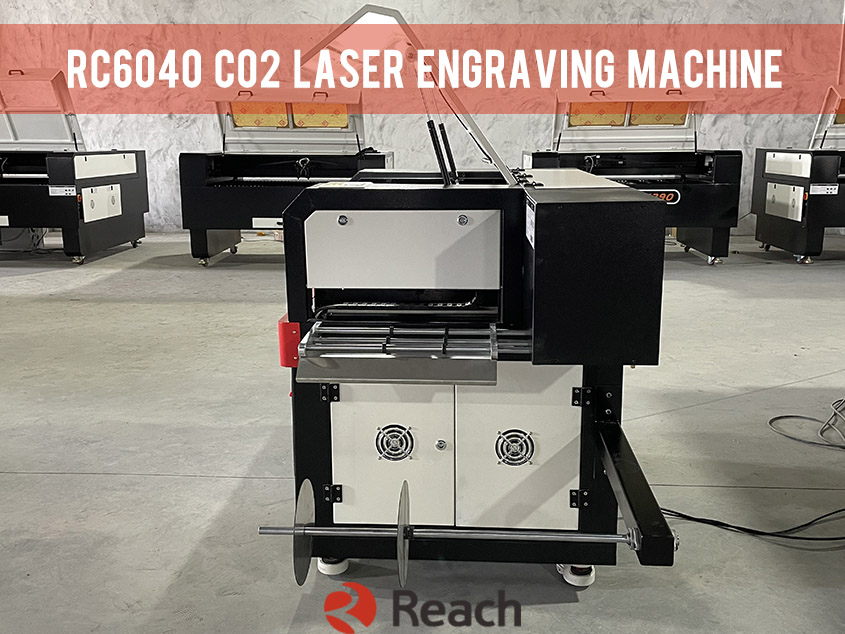

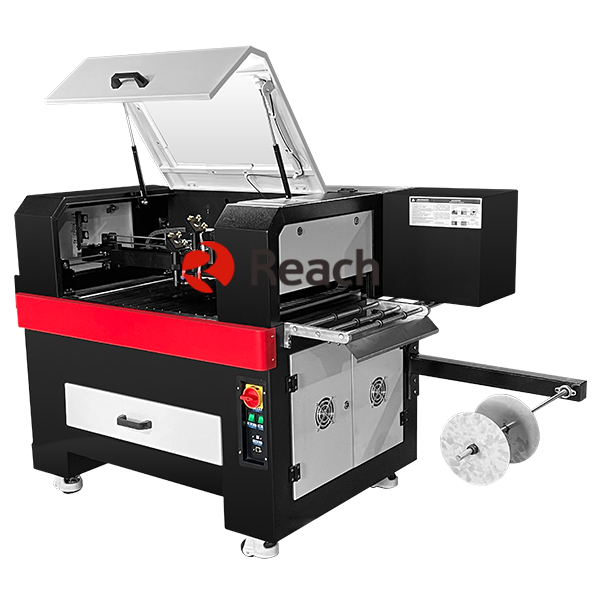

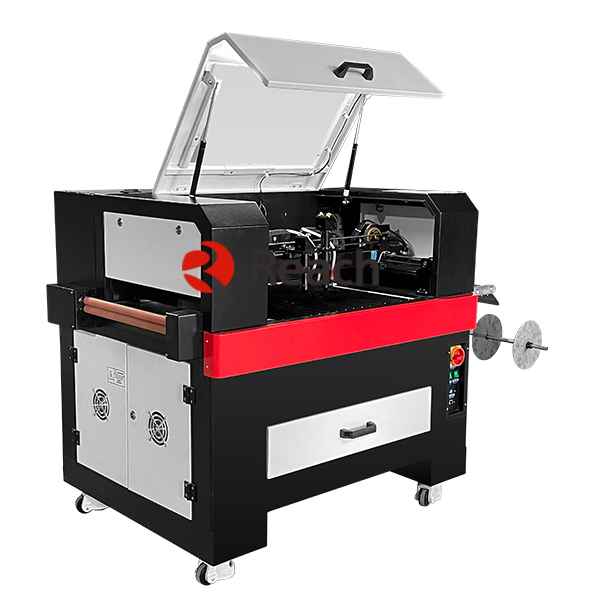

RC6040 CO2 Laser engraving machine
- Product model: RC6040
- Laser type: CO2
- Laser tube power: 70W/90W(optional)
- Work area: 600mmx400mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK
RC6040 CO2 Laser engraving machine
Features:
1. Work area of 600mm x 400mm
2. Laser source CO2 70w/90w glass tube
3. Small size, compact and stable, high precision engraving and cutting.
4. Low maintenance costs
5. Straight line guide rail to make sure the stability and high precision.

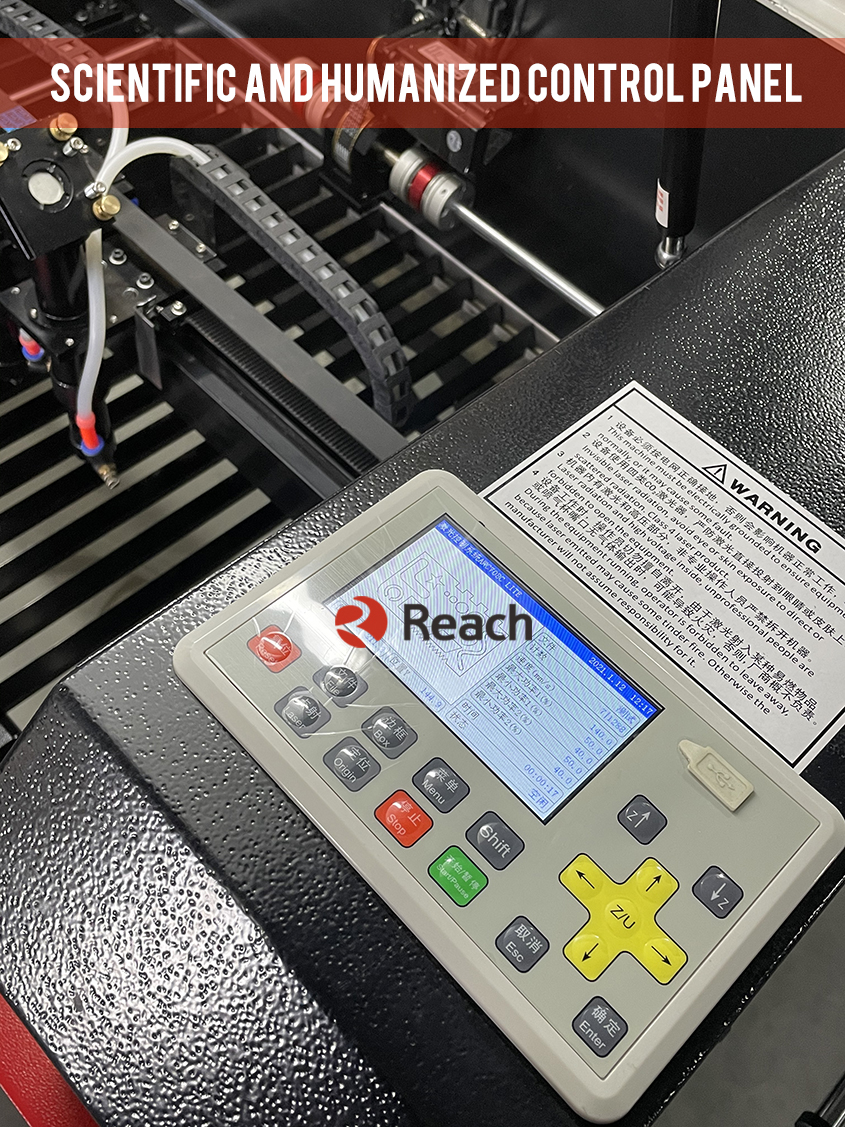

6. Easy operation by making new designs, transport to control panel by USB or PC by DSP digital control technology.
7. Good extraction system makes less smoke with clean cutting effect.
8. Cutting thickness: 0-8mm acrylic.
9. Optional honeycomb table or blade table for various cutting needs.
10. Widely applied for nonmetallic materials like rubber, plastics, acrylic, ceramic, wood, bamboo, paper, PVC board, epoxy resin, fabric, leather, and other non-metal materials'engraving and cutting.
11. Machine comes with accessories: Chiller, blower, air compressor and software.
Optional extra installation for camera , projector device, up and down table, rotary device

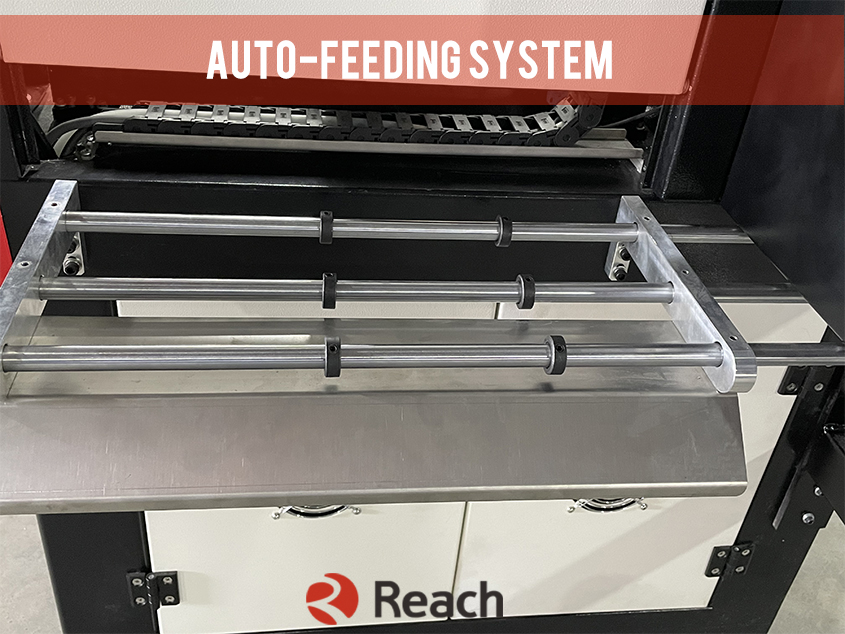

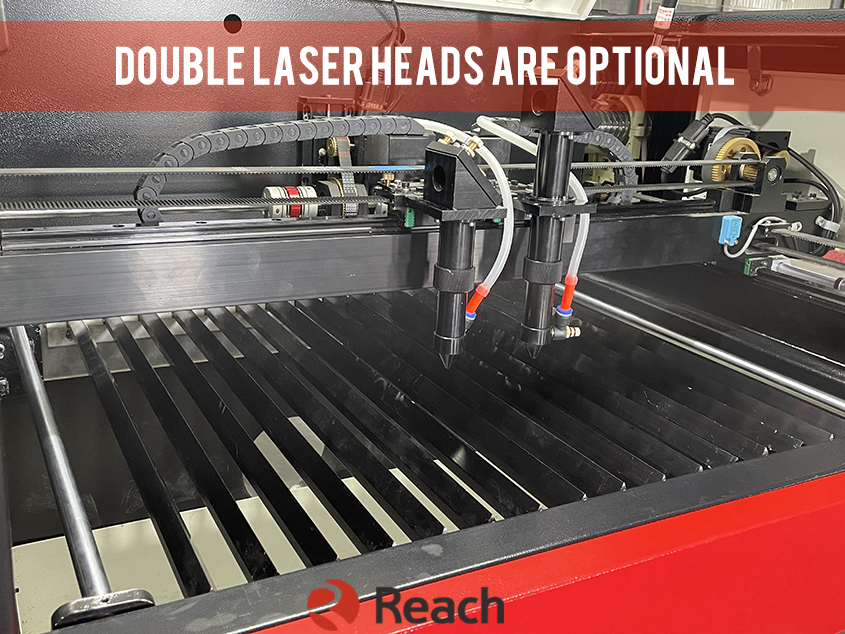

Remarks: Auto-feeding system and double laser heads are optional.
Remarks: Auto-feeding system and double laser heads are optional.
Technical Parameter：
| Model | RC6040 |
| Laser type | CO2 |
| Laser Tube Power | 70W/90W(optional) |
| Laser head | Single Head |
| Driving system | Step motor |
| Working Area | 600mmx400mm |
| Dimension | 1350mmx810mmx1110mm |
| Weight | 170KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10 ,PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. |
| Position Accuracy | ±0.1mm |
| Speed | Cutting speed 0-36 m/min and engraving speed: 64 m/min. |
| Cooling type | Water cooling |
| Work environment | Clean, less dust,Temperature 10℃~35℃,Humidity: 30%-80% |
Cutting Samples
Reach laser provides free sample making service for you.
Application materials:
Nonmetallic materials like rubber, plastics, acrylic, ceramic, wood, bamboo, paper, PVC board, epoxy resin, fabric, leather, and other non-metal materials’ cutting engraving.
