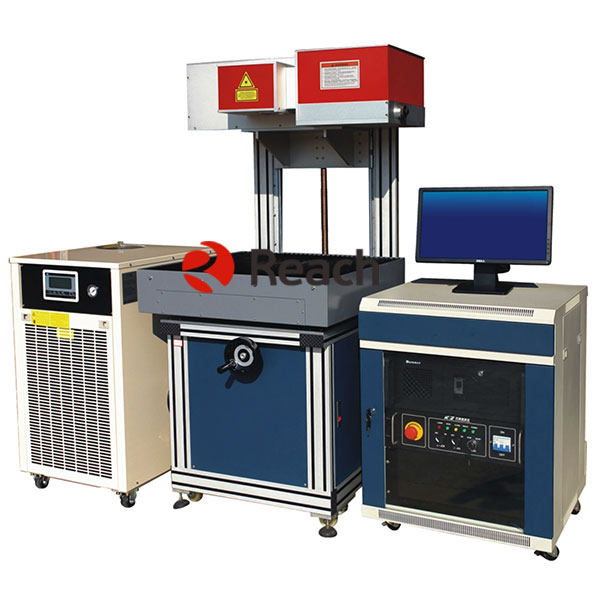

CO2 galvo laser marking machine
RC-M180 CO2 galvo laser marking machine
- Product model: RC-M180
- Laser type: CO2
- Laser tube power: 180W
- Work area: 300mmx300mm 600mmx600mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK
RC-M180 CO2 galvo laser marking machine
Features:
1. Sealed CO2 laser RF laser generator，high quality laser spot with stable output power.
2. Galvo laser system with 3-axis high speed engraving / marking and cutting in industrial production.
3. High-speed galvanometer scanning system to ensure accuracy and repeat positioning accuracy.
4. Laser power 180W (more options available).
5. Marking area 600x600mm (The scan head can be adjusted manually to meet needs of processing working area from 300*300mm to 600*600mm).
6. Double suction structures enable the processing dust to be effectively removed to achieve environmental protection and safety.
7. Water Cooling.
8. High intensity use, high efficiency, and big power.
9. Integrated body design, highly integrated optical, electronic, and mechanical devices
10. Engraving speed up to 9000 mm / sec.
11. Additional red-light indicator for easy alignment.
12. Widely applied for nonmetallic materials like fabric, leather, paper, wood, PVC board, acrylic, plastics, rubber, bamboo, and others.
13. Optional device on machine: Rotary device, moving table, and camera positioning system.
Technical Parameter:
| Model | RC-M180 |
| Laser type | CO2 |
| Laser Tube Power | 180W |
| Working Area | 300mmx300mm 600mmx600mm |
| Dimension | 1750mmx1300mmx1780mm |
| Weight | 300KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10, PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG |
| Minimum line width | 0.2mm |
| Marking speed | ≤9000mm |
| Cooling type | Water cooling |
| Work environment | Clean, less dust,Temperature 10℃~35℃,Humidity: 30%-80% |
Leather Marking
Reach laser provides free sample making service for you.
Reach laser provides free sample making service for you.
Application materials:
Fabric, jeans, leather, paper, wood, PVC board, acrylic, plastics, rubber, bamboo, and other non-metal materials.
