UV laser marking machine

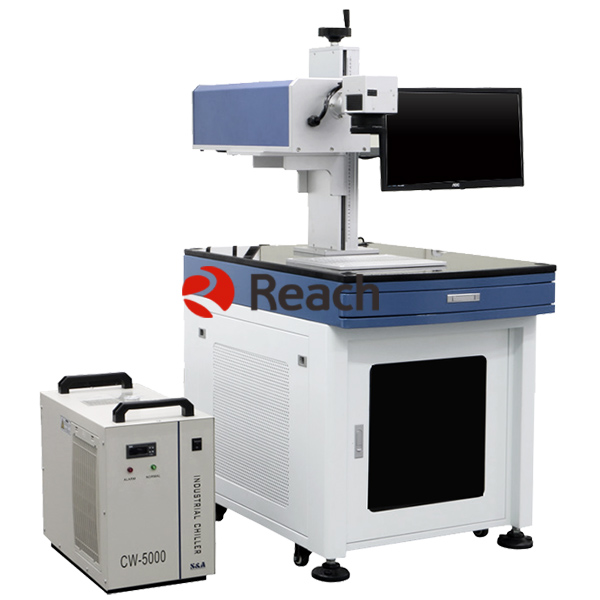

RC-UV3 UV laser marking machine
- Product model: RC-UV3
- Laser type: UV
- Laser tube power: 3W
- Work area: 100mmx100mm (more sizes available)
- Cooling type: High precision constant temperature/closed loop air cooling
- Email US: reach@reach-automation.com
- FEEDBACK
RC-UV3 UV laser marking machine
Features :
1. High quality laser beam, small focus spot, to realize super fine marking.
2. Short wavelength laser, very little thermal effect, no material burnt, suitable for sensitive materials, high-quality high precision 3. special materials marking needs.
4. Small compact structure, stable laser output, high precision, and efficiency marking.
5. Marking areas of 100mmx100mm
6. Laser source 3W UV laser (3W/5W/8W optional),20000 working hours no maintenance.
7. Integrated body design, highly integrated optical, electronic, and mechanical devices
8. Environment friendly, pollution-free, easy operation, no consumables, save labor cost, low maintenance cost.

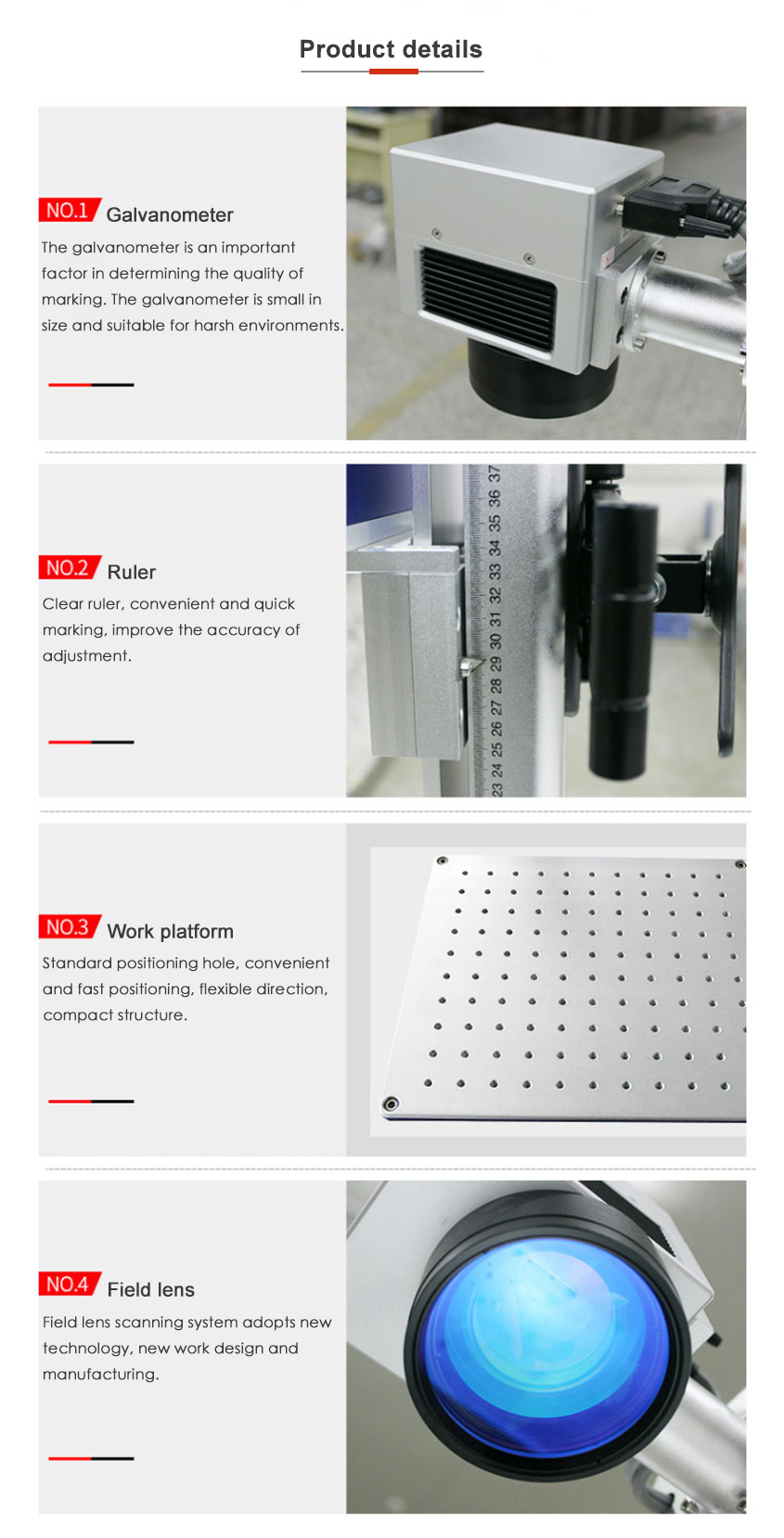

9. High-speed galvanometer scanning system to ensure accuracy and repeat positioning accuracy.
10. Engraving speed up to 7000 mm / sec.
11. Optional device on machine: rotary device and camera positioning system.
Technical Parameter:
| Model | RC-UV3 |
| Laser type | UV |
| Laser Tube Power | 3W |
| Laser wavelength | 355nm |
| Working Area | 100mmx100mm (more sizes available) |
| Dimension | 1170mmx650mmx1250mm |
| Weight | 150KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10, PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repeat precision | ±0.001mm |
| Marking speed | ≤7000mm |
| Marking depth | <1mm |
| Cooling type | High precision constant temperature/closed loop air cooling |
| Work environment | Clean, less dust,Temperature 10℃~35℃,Humidity: 30%-80% |

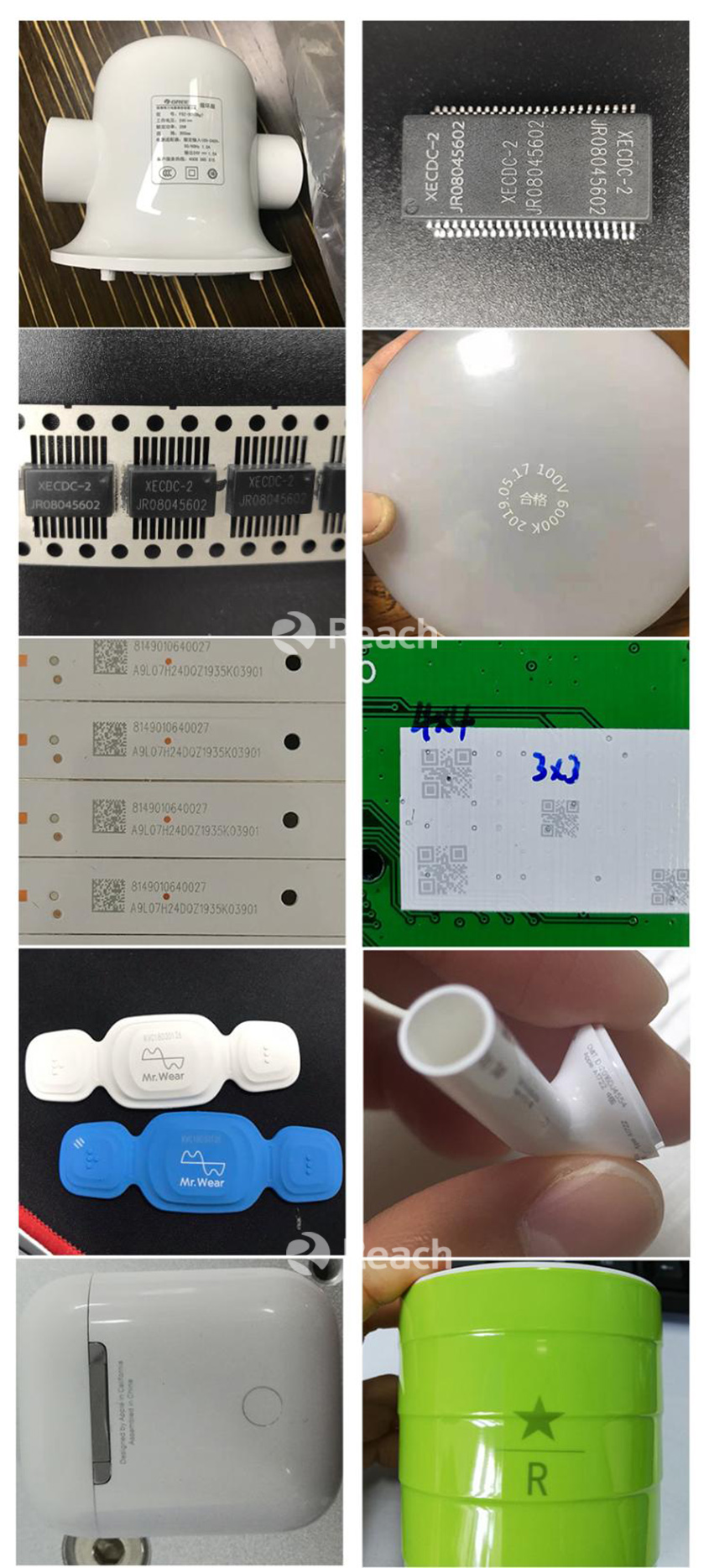

Making Samples
Reach laser provides free sample making service for you.
Application materials:
Electronic components, melt blown cloth, non-woven cloth, glass, ceramic, plastic, tape etc.
Main applications: medical supplies, ultra-fine processing high-end market, cosmetics, and other polymer materials packaging bottle surface marking.
Marking and scribing of flexible PCB board, micro-hole, and blind hole processing of silicon wafer.
LCD glass two-dimensional code marking, surface drilling of glassware, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, data cable, headphone cable, construction materials, etc.
