Vision laser cutting machine

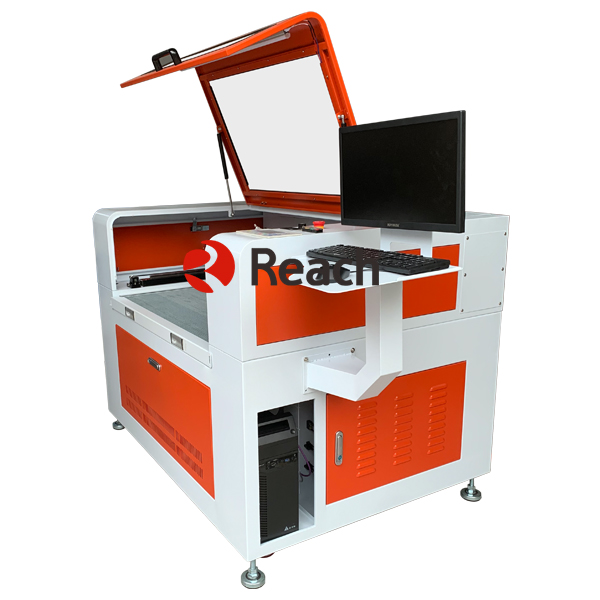

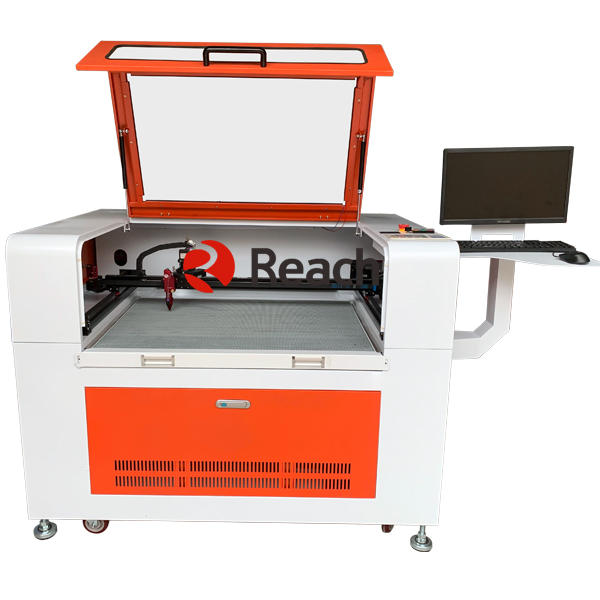

RC1080-CCD Vision laser cutting machine
- Product model: RC1080-CCD
- Laser type: CO2
- Laser tube power: 90W
- Work area: 850mmx600mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK

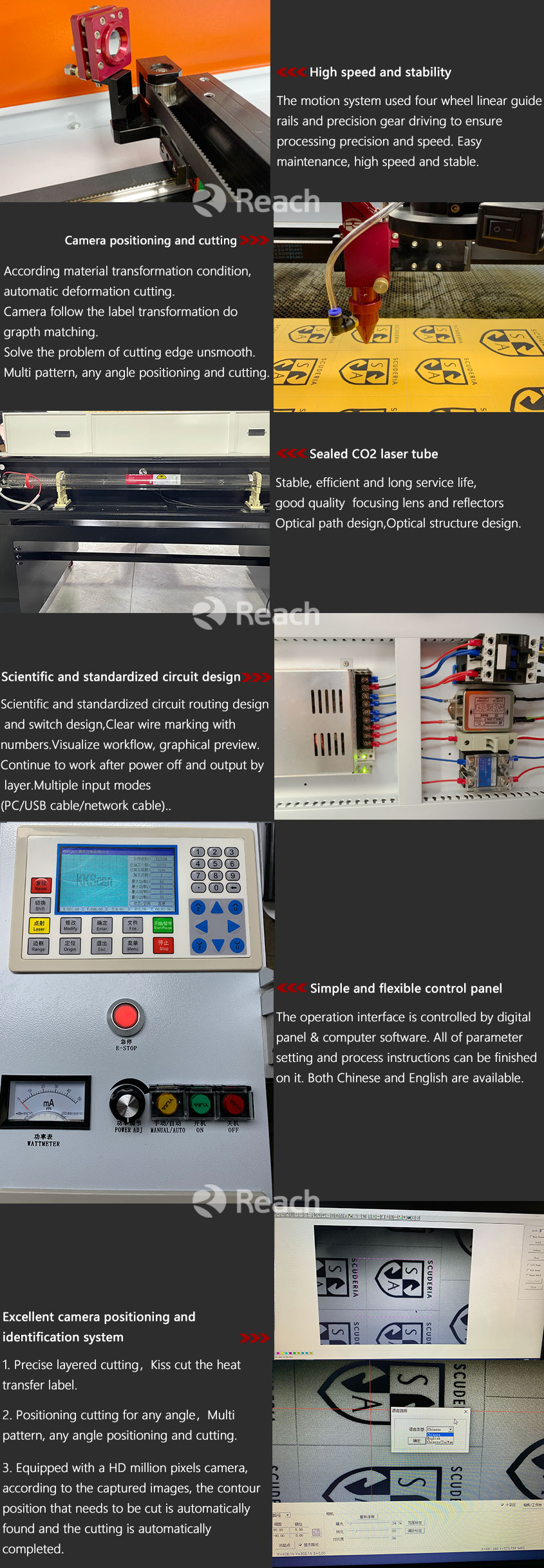

Features:
1.The device has its own intelligent typesetting software, even beginners can master the software in a short time; support CorelDraw, AutoCAD, DST embroidery software, AI, and other Windows compatible vector graphics software, easy to use.
2. With CCD camera for cutting design contour, camera positioning system automatically search the outline of each label and cut after software typesetting.
3.Adopts DSP to ensure the software enjoy the powerful data processing ability, no deformation and distortion for high-speed continuous curve cutting.

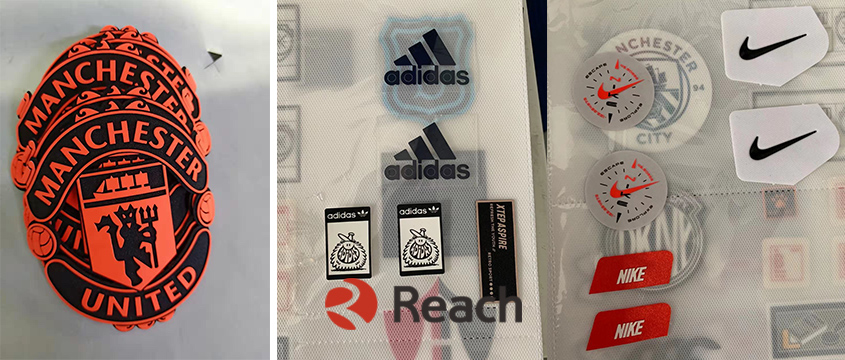

4.Widely applied for woven labels, embroidery patches, printed labels, garment, and leather accessories.
5.Any angle cutting, cutting multi designs, identify defective labels, big size label cutting with Feature positioning and Two-point positioning.
6.Low maintenance costs
7.Straight line guide rail to make sure the stability and high precision.
8.Good extraction system makes less smoke with clean cutting effect.
9. Honeycomb table
10. Machine comes with accessories: Computer, Chiller, blower, air compressor and software.
Technical Parameter：
| Model | RC1080-CCD |
| Laser type | CO2 |
| Laser Tube Power | 90W |
| Laser head | Single Head |
| Driving system | Step motor |
| Working Area | 850mmx600mm |
| Camera recognition range | Standard 130*105mm (adjustable to maximum 170*135mm) |
| Dimension | 1600mmx1150mmx1130mm |
| Weight | 230KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10,PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. |
| Repeated positioning accuracy | ±0.08mm |
| Cutting accuracy | ±0.05mm |
| Speed | Maximum cutting speed 500mm/s |
| Cooling type | Water cooling |
| Work environment | Clean, less dust, Temperature 10℃~35℃,Humidity: 30%-80% |
Application materials：
Woven labels, embroidery patches, printed labels, garment, and leather accessories.
