Vision laser cutting machine

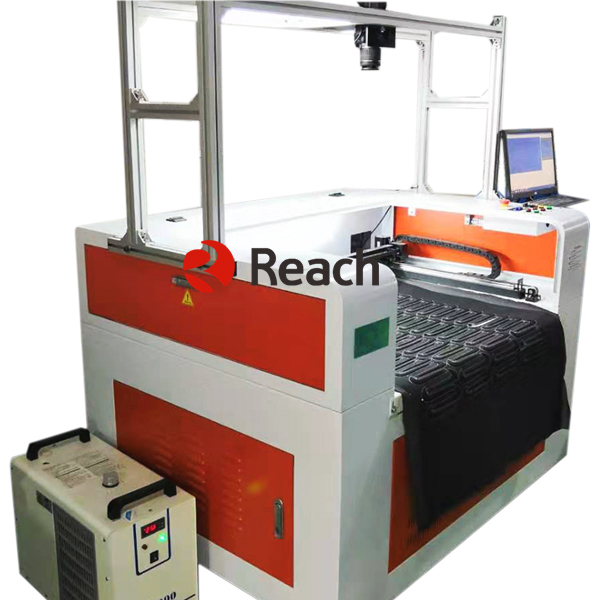

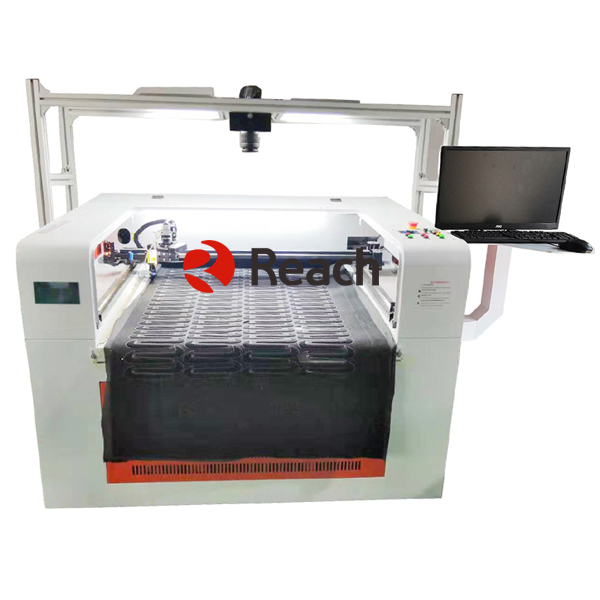

RC1080-CCD-SCCD Vision laser cutting machine
- Product model: RC1080-CCD-SCCD
- Laser type: CO2
- Laser tube power: 90W
- Work area: 850mmx600mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK
Features:
1.Panoramic camera positioning on the top combined and high precision small camera positioning system on the laser head, to realize big size labels cutting with high production efficiency and precise fine high-quality cutting.
2.The device has its own intelligent typesetting software, even beginners can master the software in a short time; support CorelDraw, AutoCAD, DST embroidery software, AI, and other Windows compatible vector graphics software, easy to use.
3. With CCD camera for cutting design contour, camera positioning system automatically search the outline of each label and cut after software typesetting.
4.Adopts DSP to ensure the software enjoy the powerful data processing ability, no deformation and distortion for high-speed continuous curve cutting.
5.Widely applied for big and small sizes woven labels, embroidery patches, printed labels, garment, and leather accessories.
6.Any angle cutting, cutting multi designs, identify defective labels, big size label cutting with Feature positioning and Two-point positioning.
7.Low maintenance costs
8.Straight line guide rail to make sure the stability and high precision.
9.Good extraction system makes less smoke with clean cutting effect.
10 Honeycomb table
11. Machine comes with accessories: Computer, Chiller, blower, air compressor and software.
Technical Parameter：
| Model | RC1080-CCD-SCCD |
| Laser type | CO2 |
| Laser Tube Power | 90W |
| Laser head | Single Head |
| Driving system | Step motor |
| Working Area | 850mmx600mm |
| Camera recognition range | 850*600mm |
| Dimension | 1600mmx1150mmx1130mm |
| Weight | 240KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10,PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. |
| Repeated positioning accuracy | ±0.08mm |
| Cutting accuracy | ±0.05mm |
| Speed | Maximum cutting speed 500mm/s |
| Cooling type | Water cooling |
| Work environment | Clean, less dust, Temperature 10℃~35℃,Humidity: 30%-80% |

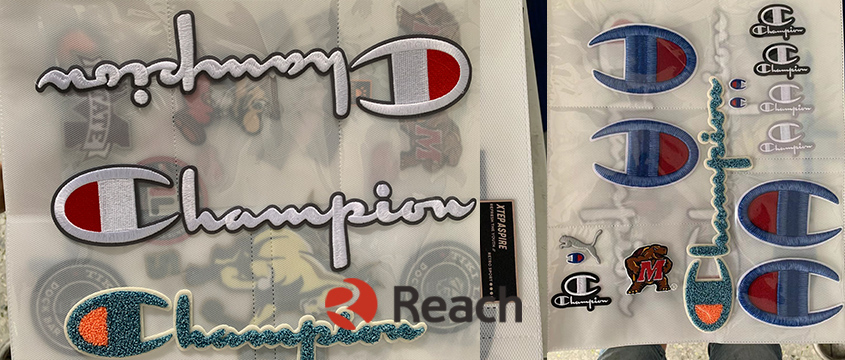

Application materials：
Big size woven labels, embroidery patches, printed labels, garment, and leather accessories.
