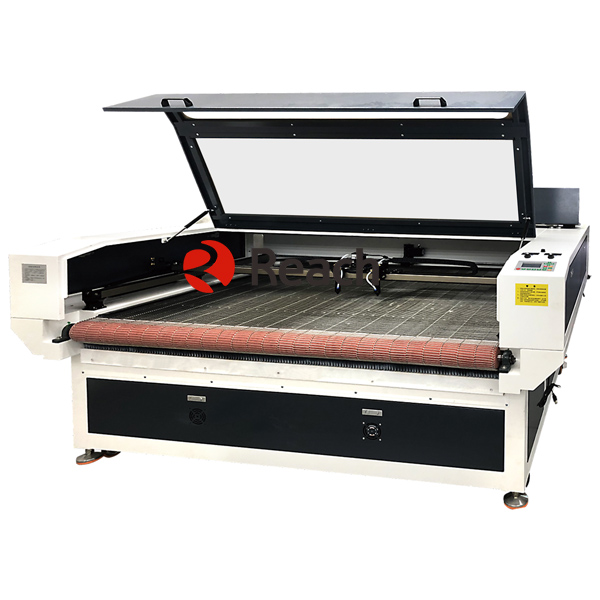

Vision laser cutting machine
RC1610-CCD-AF Vision laser cutting machine with auto-feeding
- Product model: RC1610-CCD-AF
- Laser type: CO2
- Laser tube power: 130W
- Work area: 1500mmx900mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK

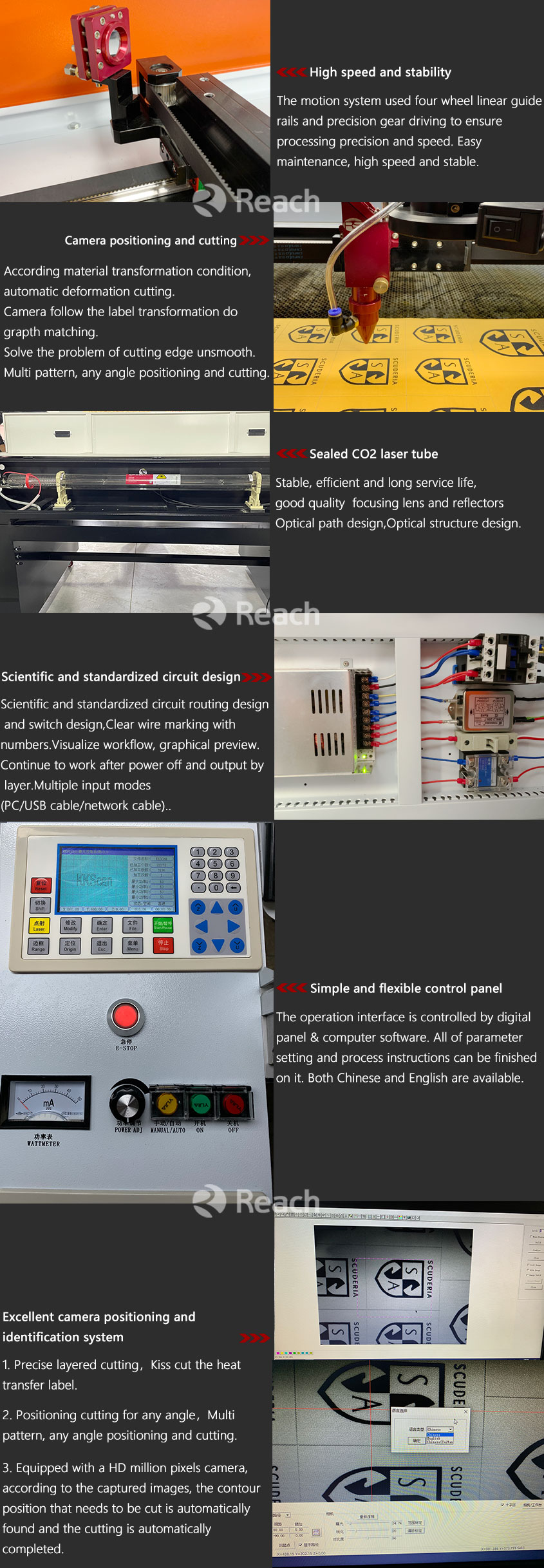

Features:
1.With high resolution camera for cutting design contour, camera positioning system automatically search the outline of each label and cut after software typesetting.
2.With auto-feeding conveyor system, widely applied for mass production of big rolls of woven labels, embroidery patches, printed labels, garment, and leather accessories. High efficiency and saving labor cost.
3. The device has its own intelligent typesetting software, even beginners can master the software in a short time; support CorelDraw, AutoCAD, DST embroidery software, AI, and other Windows compatible vector graphics software, easy to use.
5.Any angle cutting, cutting multi designs, identify defective labels, big size label cutting with Feature positioning and Two-point positioning.
6. Machine comes with accessories: Computer, Chiller, blower, air compressor and software.
Technical Parameter：
| Model | RC1610-CCD-AF |
| Laser type | CO2 |
| Laser Tube Power | 130W |
| Laser head | Single Head (Two heads optional) |
| Driving system | Servo motor |
| Working Area | 1500mmx900mm |
| Dimension | 2200mmx2100mmx1175mm |
| Weight | 500KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10,PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. |
| Repeated positioning accuracy | ±0.08mm |
| Cutting accuracy | ±0.05mm |
| Speed | Maximum cutting speed 500mm/s |
| Cooling type | Water cooling |
| Work environment | Clean, less dust, Temperature 10℃~35℃,Humidity: 30%-80% |

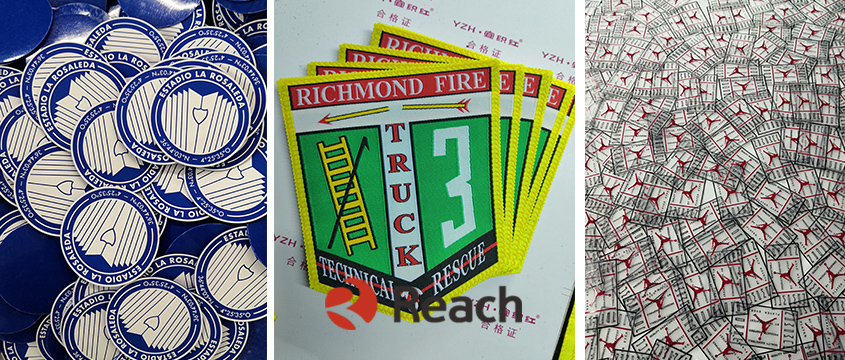

Application materials：
Big rolls woven labels, embroidery patches, printed labels, garment, and leather accessories.
