CO2 laser cutting machine

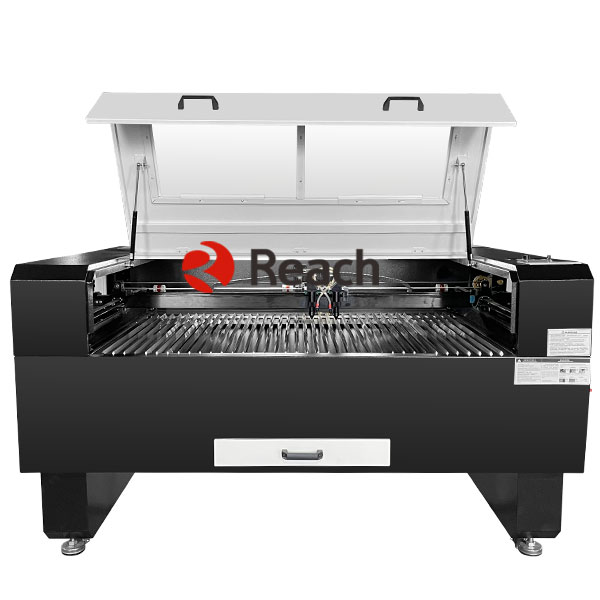

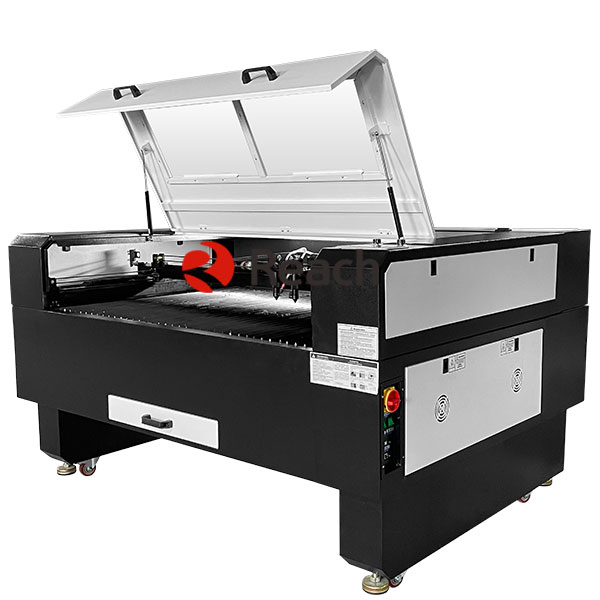

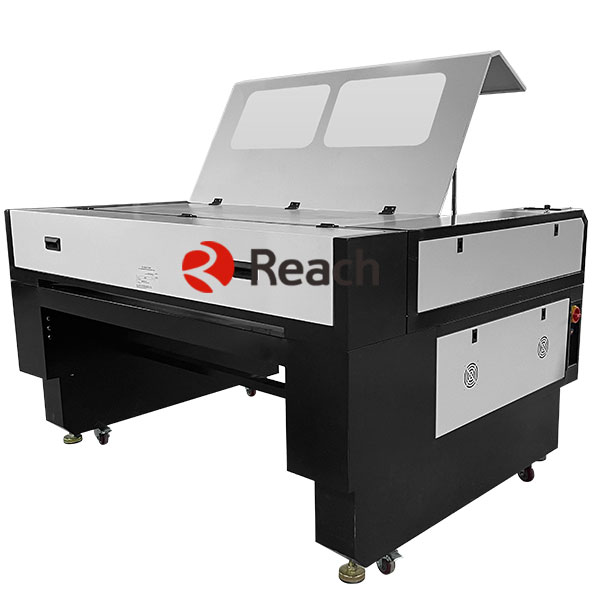

RC1410/RC1410-T CO2 laser cutting machine
- Product model: RC1410/RC1410-T
- Laser type: CO2
- Laser tube power: 90W-150W glass tube(optional)
- Work area: 1400mmx1000mm1300mmx1000mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK
Features:
1. Work area of 1400mm x 1000 mm.
2. One laser head or two laser heads optional, two heads working interaction.
3. Laser source CO2 90W-150W glass tube.
4. Low maintenance costs.
5. Step motor for precise movement of the laser.
6. Straight line guide rail to make sure the stability and high precision.
7. Easy operation by making new designs, transport to control panel by USB or PC by DSP digital control technology.
8. Good extraction system makes less smoke with clean cutting effect.
9. Cutting thickness: 0-20mm acrylic.
10. Optional honeycomb table or blade table for various cutting needs.
11. Opening doors front and back machine to allow large parts.
12. Widely applied for nonmetallic materials like fabric, leather, paper, wood, PVC board, acrylic, epoxy resin, plastics, rubber, bamboo, and other non-metal materials'cutting.
13. Machine comes with accessories: Chiller, blower, air compressor and software.
14. Optional extra installation for camera and projector device.
Details of the laser machine
Technical Parameter:
Cutting samples
Reach laser provides free sample making service for you.
Details of the laser machine
Technical Parameter:
| Model | RC1410 | RC1410-T |
| Laser type | CO2 | |
| Laser Tube Power | 90W-150W (optional) | 90W-150W (optional) x 2 |
| Laser head | Single Head | Two Heads |
| Driving system | Step motor | |
| Working Area | 1400mmx1000mm | 1300mmx1000mm |
| Dimension | 2000mmx1600mmx1150mm | |
| Weight | 360KG | 380KG |
| Power Supply | AC220-240V 50/60Hz | |
| System and File Format | Win 10, PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. | |
| Position Accuracy | ±0.1mm | ±0.1mm |
| Speed | Cutting speed 0-36 m/min and engraving speed: 64 m/min. | |
| Cooling type | Water cooling | |
| Work environment | Clean, less dust,Temperature:10℃~35℃,Humidity: 30%-80% | |
Cutting samples
Reach laser provides free sample making service for you.
Application materials:
Nonmetallic materials like fabric, leather, acrylic, vinyl, paper, wood, PVC board, EVA foam, epoxy resin, plastics, rubber, bamboo, synthetic materials, etc.
