CO2 laser cutting machine

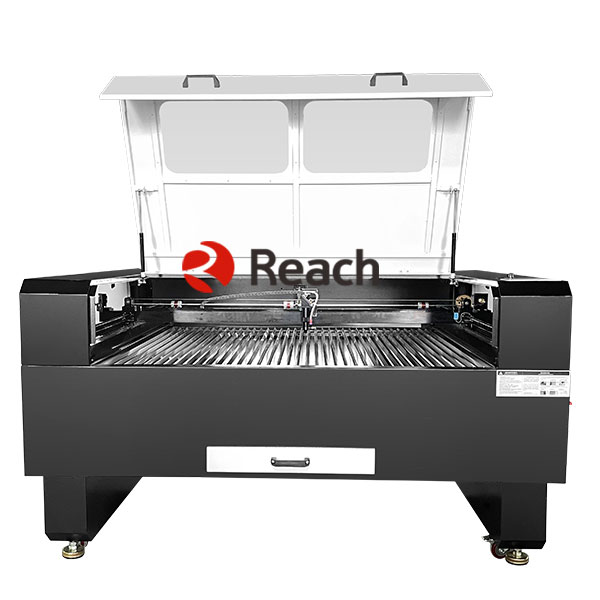

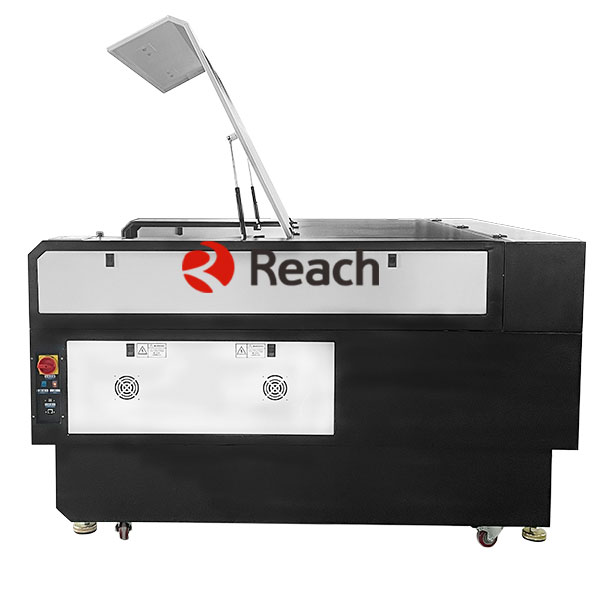

RC1313/RC1313-T CO2 laser cutting machine
- Product model: RC1313/RC1313-T
- Laser type: CO2
- Laser tube power: 130W-150W glass tube(optional)
- Work area: 1300mmx1300mm1200mmx1300mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK
Features:
1. Work area of 1300mm x 1300mm, big working area for large pieces materials
2. Widely applied in advertisement, printing, and packaging industry
3. Opening doors front and back machine to allow large parts.
4. One laser head or two laser heads optional, two heads working interaction
5. Laser source CO2 130W-150W glass tube
6. Low maintenance costs
7. Step motor for precise movement of the laser
8. Straight line guide rail to make sure the stability and high precision.
9. Easy operation by making new designs, transport to control panel by USB or PC by DSP digital control technology.
10. Cutting thickness: 10-20mm acrylic
11. Optional honeycomb table or blade table for various cutting needs
12. Machine comes with accessories: Chiller, blower, air compressor and software.
13. Optional extra installation for camera，projector device .
Technical Parameter:

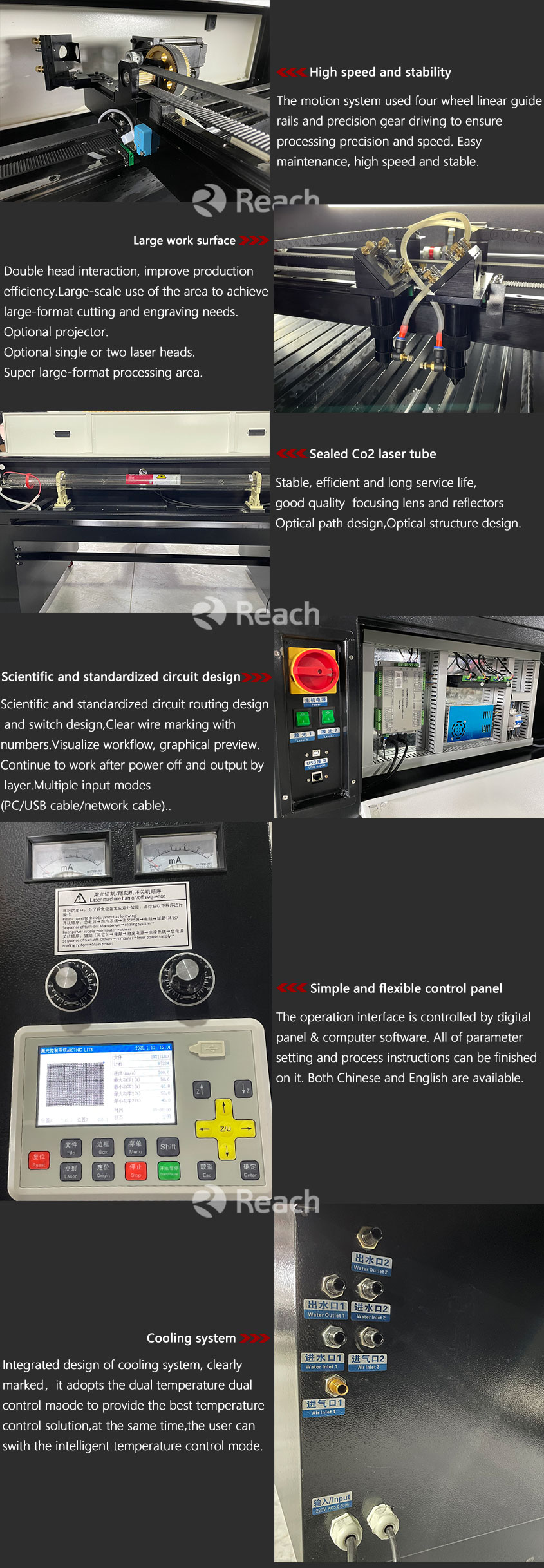

Details of the laser machine
Technical Parameter:
| Model | RC1313 | RC1313-T |
| Laser type | CO2 | |
| Laser Tube Power | 130W-150W (optional) | 130W-150W (optional) x 2 |
| Laser head | Single Head | Two Heads |
| Driving system | Step motor | |
| Working Area | 1300mmx1300mm | 1200mmx1300mm |
| Dimension | 2040mmx1900mmx1050mm | |
| Weight | 390KG | 420KG |
| Power Supply | AC220-240V 50/60Hz | |
| System and File Format | Win 10, PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. | |
| Position Accuracy | ±0.1mm | ±0.1mm |
| Speed | Cutting speed 0-36 m/min and engraving speed: 64 m/min. | |
| Cooling type | Water cooling | |
| Work environment |
Clean, less dust,Temperature:10℃~35℃,Humidity: 30%-80% |
|
Cutting samples
Reach laser provides free sample making service for you.
Reach laser provides free sample making service for you.
Application materials:
Nonmetallic materials especially applied for rigid materials: acrylic, wood, PVC board, plastics, etc.
